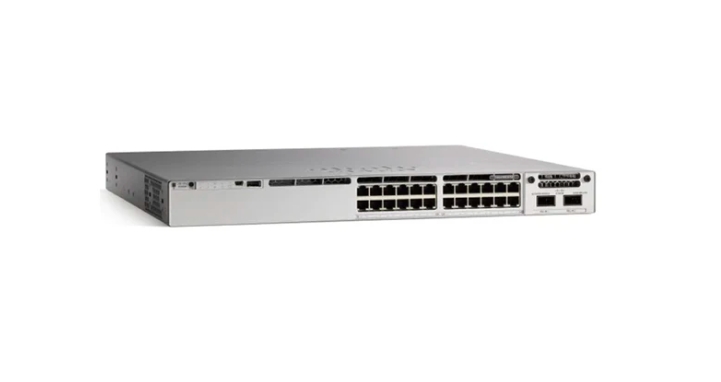

C9200L-24P-4X-A Cisco Catalyst 9200L 24-port PoE+, 4 x 10G Switches

The C9200L-24P-4X-A is the peak of Cisco Catalyst 9200L 24-port PoE+ technology, with 4x10G uplink Switch and Network Advantage software; the Catalyst 9000 hardware and software advances bring unparalleled power and intent-based networking to wider deployments.

C9200L-24P-4X-A Quick Spec

Model	C9200L-24P-4X-A
Downlinks total 10/100/1000 or PoE+ copper ports	24 ports full PoE+
Uplink configuration	4x 10G fixed uplinks
Default primary AC power supply	PWR-C5-600WAC
Fans	Fixed redundant
Software	Network Advantage
Stacking bandwidth	80 Gbps
DRAM	2 GB
Flash	4 GB
Switching capacity	128 Gbps
Forwarding rate	190.4 Mpps
Chassis Dimensions	1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm



Catalyst 9200 series provides these highlights:

• Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
• Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
• Flexible downlink options with data or PoE+
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
• Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
