Features
- Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
- Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
- Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
- Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
- Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Differentiator:Â Next-generation family of stackable access switches ideal for enterprise branch offices, campuses and SMB networks. 48x 10/100/1000BASE-T and 4x 1/10G SFP ports. 370W of available Class 4 PoE power.
Power consumption:Â 76W at 230 VAC
Input voltage:Â 100V-120V/200V-240V
Ports:Â 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 100M/1/10G SFP+ ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x RJ-45 Console Port
1x OOBM
1x USB Type-A Host port
Latency:Â 1 Gbps: 2.28 ÎĽSec
10 Gbps: 1.46 ÎĽSec
Routing/switching capacity:Â 176 Gbps
Stacking capabilities:Â 8 members
Throughput:Â Up to 130.9 Mpps
Memory and processor: Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power supply name:Â Fixed power supply
Up to 370W of Class 4 PoE Power
PoE capability:Â 370W
Warranty:Â Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

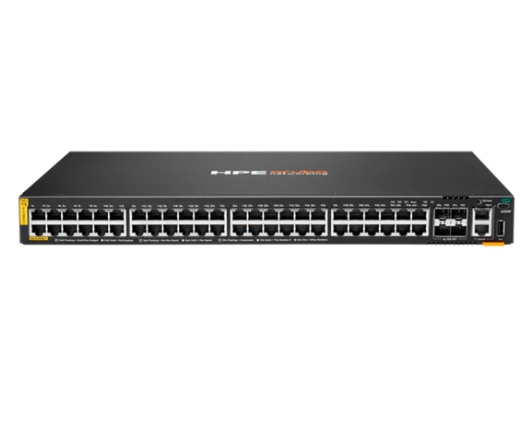

Detailed product description:Â Aruba 6200F 48G Class4 PoE 4SFP+ 370W Switch
Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame
Min=0 \ Max = 4 SFP/SFP+ 1/10G Transceiver
1U – Height
Weight:Â 5.10 kg, max, depending on model (11.24 lbs, max, depending on model)
Dimensions:Â 4.39 x 44.2 cm x 32.7 cm (1.73 x 17.4 x 12.9 in)
